Fabricated Temporary Strainers
Hellan Fluid Systems manufactures temporary strainers that provide cost-effective protection for valves, meters, pumps, and other equipment. Temporary cone, basket, or plate strainers are designed for temporary use during start-up applications or the revamping of piping systems. We can custom fabricate temporary strainers to meet our clients’ needs.
Pressures to 3705 PSIG
Temperatures to 800ºF
What Does Fabrication Provide?

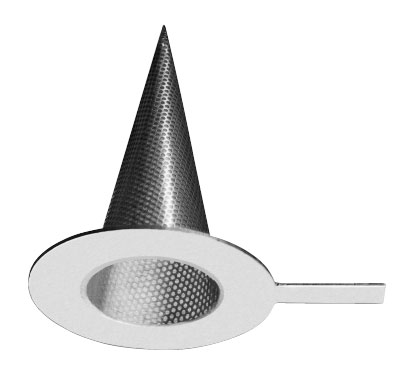

Temporary Strainers are constructed of a heavy gauge perforated plate with drilled holes on off-set centers to catch debris in pipelines during start-up.
They can be fabricated to any length in many different types of metals or alloys
Applications
- Process Industry
- Water and Waste Water
- Power Industry
- Pulp and Paper
- Chemical Industry
- Marine
- Oil and Gas
- Steel Mills
- Metals and Mining
Sizes
- 3/4" (20mm) up to 24" (600mm) as standard
- Larger sizes available upon request
End Connections
- Wafer Flat Faced
- Raised Face
- RTJ Flanged
Features
- Cone, basket & plate strainers
- 100% to 300% open area range (OAR) as standard
- Custom engineered designs available
Materials
- Stainless Steel
- Carbon Steel
- Monel
- Hastelloy
- Other Alloys upon request
Industries
Hellan Strainers are used in all industries that require the collection and removal of particulate from fluid systems. Listed below, are just a few of the ways Hellan provides industrial solutions to the global market.
Our Quality
Hellan Fluid Systems' self-cleaning fluid strainers are ISO9001 certified, meet all Navy Mil-Spec requirements, are approved by the American Bureau of Shipping and Lloyd’s Register, are listed by Underwriters Laboratories and designed in accordance with API, ASME, and PED.
