Military Simplex Basket Strainers
Military simplex strainers are used to remove damaging debris from liquid flow that can be interrupted for cleaning baskets, in a batch process, etc. Military simplex basket strainers are designed for an open area straining ratio of at least 6:1, which means less operating costs to clean the baskets. The heavy-duty wall thickness offers lower life cycle costs. Hellan Strainer military simplex strainers can be supplied in ANSI, DIN, or Navy Drilled to MIL-F-20042D flanges. Material can be supplied in bronze, aluminum bronze, steel, and stainless steel. Our strainers have been shock tested to MIL-S-901D.
Products
| Size | Operation | Flow | Model | Catalog Pages |
| 1/2″ | Manual | In-line | 135B | StaplesAndPfeiffer_135B.pdf |
| 3/4″ | Manual | In-line | 135B | StaplesAndPfeiffer_135B.pdf |
| 1″ | Manual | In-line | 135B | StaplesAndPfeiffer_135B.pdf |
| 1 1/4″ | Manual | In-line | 135B | StaplesAndPfeiffer_135B.pdf |
| 1 1/2″ | Manual | In-line | 135B | StaplesAndPfeiffer_135B.pdf |
| 2″ | Manual | In-line | 135B | StaplesAndPfeiffer_135B.pdf |
| 2 1/2″ | Manual | In-line | 135B | StaplesAndPfeiffer_135B.pdf |
| 3″ | Manual | In-line | 135B | StaplesAndPfeiffer_135B.pdf |
| 4″ | Manual | In-line | 135B | StaplesAndPfeiffer_135B.pdf |
| 5″ | Manual | In-line | 135B | StaplesAndPfeiffer_135B.pdf |
| 6″ | Manual | In-line | 135B | StaplesAndPfeiffer_135B.pdf |
| 8″ | Manual | In-line | 135B | StaplesAndPfeiffer_135B.pdf |
| 10″ | Manual | In-line | 135B | StaplesAndPfeiffer_135B.pdf |
| 12″ | Manual | In-line | 135B | StaplesAndPfeiffer_135B.pdf |
| 14″ | Manual | In-line | 135B | StaplesAndPfeiffer_135B.pdf |
| 16″ | Manual | In-line | 135B | StaplesAndPfeiffer_135B.pdf |

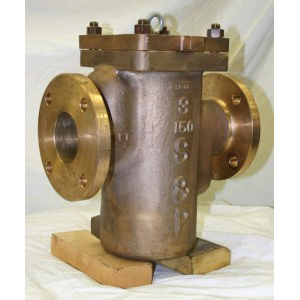

Model 135B
Basket Strainer, In-Line Flow, Bronze
Military Simplex Basket Strainers are available in sizes starting at 1/2″ and can be as large are 16″. Hellan Military Simplex Strainer can be supplied in ANSI, DIN or Navy Drilled to MIL-F-20042D flanges. Available in 2″-24″ and custom-sized models. Model 135B strainers employ a single, stationary screen to remove solids as they flow through the screen. Cleaning of the Model 135B is accomplished by removing the screen while the system is NOT under pressure.
Contact us now to learn more about our military simplex basket strainers
Industries
Hellan Strainers are used in all industries that require the collection and removal of particulate from fluid systems. Listed below, are just a few of the ways Hellan provides industrial solutions to the global market.
Our Quality
Hellan Strainers' self cleaning fluid strainers are ISO9001 certified, meet all Navy Mil-Spec requirements, are approved by the American Bureau of Shipping and Lloyd’s Register, listed by Underwriters Laboratories and designed in accordance with API, ASME and PED.
